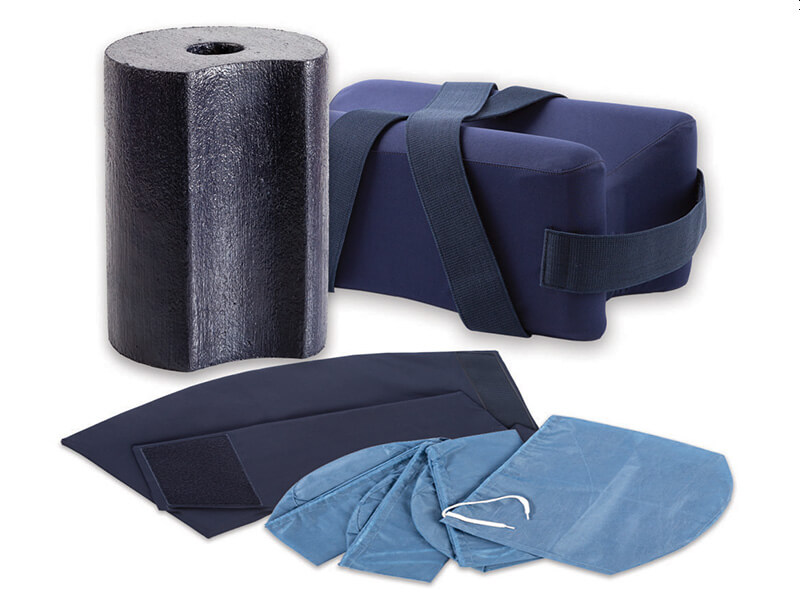

surgical advanced supine hip positioning system - padding & support kit

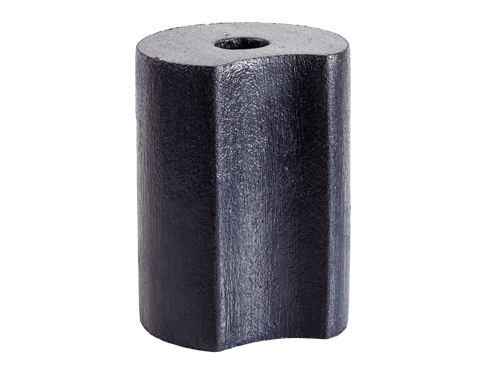

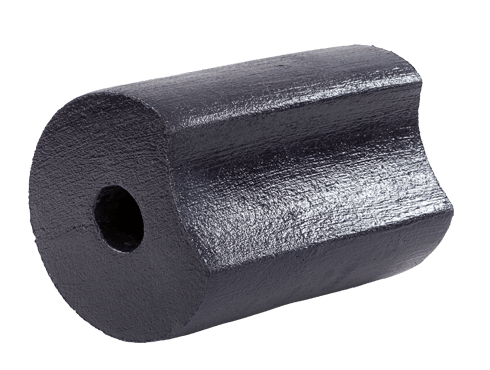

1x Perineal Post Pad
A cylinder-shaped product with an inserted groove section on the one side, with the grooved section positioned in between the legs of the patient. This product has been manufactured from flexible polyurethane polyether foam, and has been individually cut using the CNC programmed laser cut method. It is coated with an anti-microbial  resistance product. The Perineal Post Pad has multiple uses because of  its ability to sustain the rubber autoclave cycle. This hygienic product  controls cross infection.

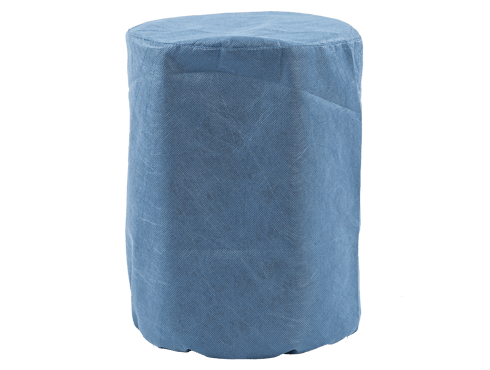

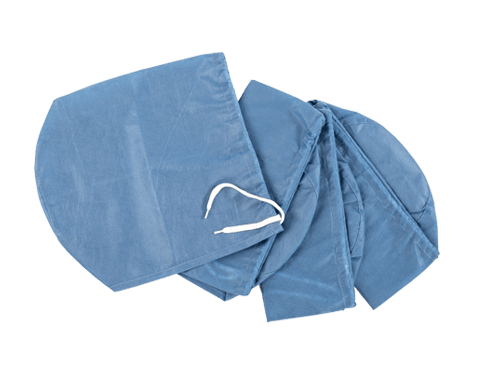

4x Perineal Post Pad Disposable Covers
A cylinder-shaped cover with one open-end, pulls over the Perineal Post  Pad and fastens with drawstrings around the Perineal Post. The  disposable cover is manufactured from disposable medical spunbond  fabric.

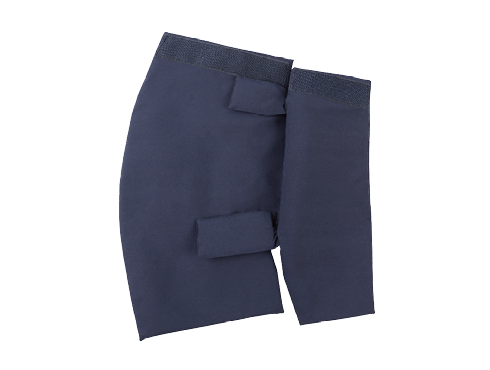

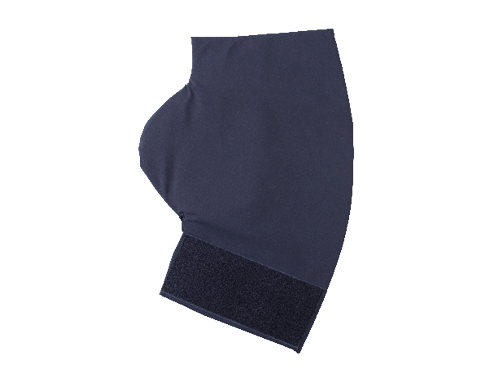

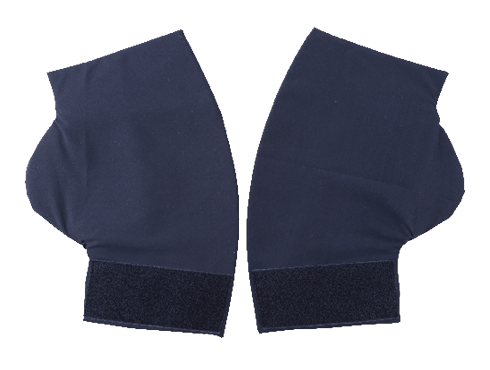

1x Pair Boot Inserts
6 mm thick closed cell padding. Covered with a flat woven fabric. The fabric is finished with a combination of Silver Plus anti-microbial and water repellent products. It is designed in the shape of a boot to fit securely over the foot of the patient, fastened with velcro. The Boot Inserts protect the patient’s feet during the traction process. The Boot Inserts can be washed for multiple-use purposes.

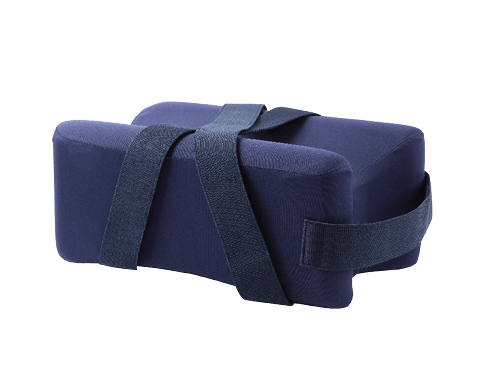

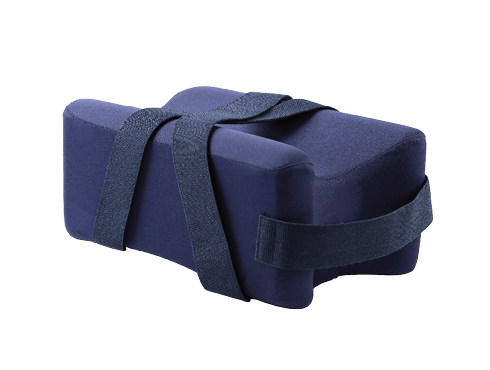

1x 90-Degree Arm Raise Position Support
A specifically designed L-shape, foam support, to raise and support the arm on the side of the patient’s operative side at a 90-degree arm raise position of forward flexion with a 90-degree bend at the elbow. The Arm Raise position support is manufactured from flexible polyurethane polyether foam, and has been individually cut using the CNC programmed laser cut method. It is covered with a seam sealed cover, manufactured from a very light, anti-static and soft, but durable, skin-friendly fabric, which is completely airtight and waterproof with elasticated velcro straps to strap the arm comfortably in a secure position.

These product (Except Perineal Post Pad Disposable Covers) can sustain the rubber cycle autoclave procedure, which is ideal for multiple client use. This high quality medical device is environmentally friendly, controls cross infection and makes it easy to perform the surgical procedure.

• Protects the patient’s genetalia
• Protects the patient’s feet and skin
• Positions and secures the patient’s arm on the operative side
• Products can be sterilised
• Products have multiple uses
• Eliminates possibilities of cross infection
• Lightweight
• Fits nicely in bed



Advance Supine Arthroscopic Hip Procedure

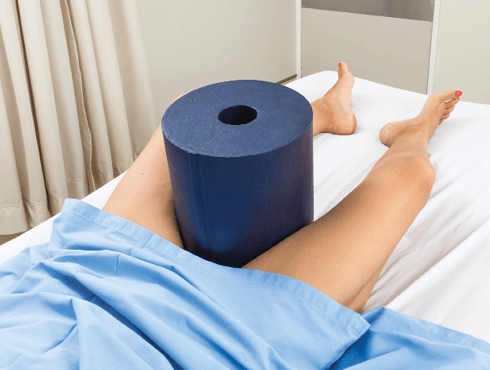

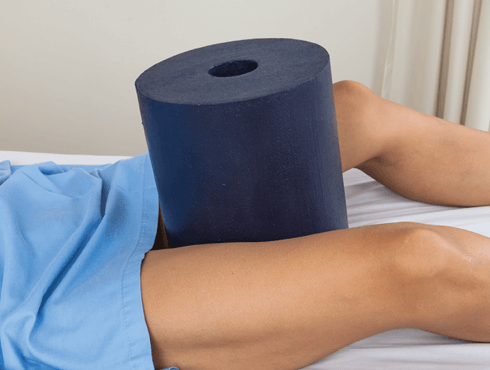

Perineal Post Pad
Position the Perineal Post Pad on the Perineal Post. Ensure that the Perineal Post Pad is well seated between the patient’s legs and that the grooved section is in between the patient’s legs and that the patient’s genetalia are not folded or compressed against the Perineal Post Pad.

Perineal Post Pad Disposable Covers
Pull a disposable cover over the Perineal Post Pad and fasten it with the drawstring at the bottom.

Boot Inserts
Fasten, step by step, the velcro straps of the Boot Inserts onto the patient’s feet to protect the patient’s feet during the traction process.

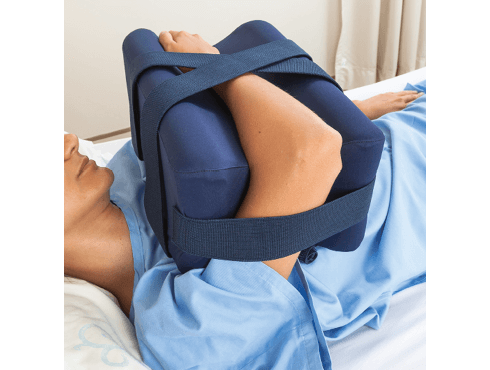

90-Degree Arm Raise Position Support
This support does not compress any neurovascular structures and secures the limb safely out of the way at a 90-degree arm raise position of forward flexion with a 90-degree bend at the elbow. When strapping to secure the arm, bring the first strap across the upper part of the arm. Bring the second strap up and over the forearm; be sure to pass the strap under the elbow, avoiding the ulnar nerve, and secure the strap. Bring the third and last strap, onto the patient’s non-operative side, up and above the forearm and finish below the patient on the operative side.


Foam:
Polyurethane flexible foam (PUR). According to REACH Regulation (EU Regulation 1907/2006EC)
Polyurethane foams have to be considered as ‘articles’. They are identified as industrial polymers. Polyurethane foams are not considered to be hazardous products, nor as preparations of dangerous substances.

Fabric:
Two-way stretch (less risk of pressure sores)
Waterproof (protection of the underlying cushion)
Impermeable to blood, urine (protection of the underlying cushion from fluid ingress and consequent deterioration of the cushion core)
Breathable (approximately 500g/m²/24h at 37°C/65% R.H. inverted cup method)
Disinfectable textile by just wiping the surface
Washable up to 40°C (reusable)
Tumbler resistant (low heat)
Biocompatible
Flame retardant to BS7175 Crib 5 and X-ray transparent
Anti-static to BS2050 (operation theatres)

Valve:
Medical-grade, vacuum pressure valve.
Commercial product name: Chirulen 1020.
These products are ‘articles’ according to the Regulation (EC) No 1907/2006 (REACH)
Manufactured out of:
Body and Moving Parts: Ultra-high molecular weight polyethylene (PE-UHMW)
CAS number: 9002-88-4
O-Rings: Polybutadiene acrylonitrile rubber (nitrile rubber)
CAS number: 9005-98-5
